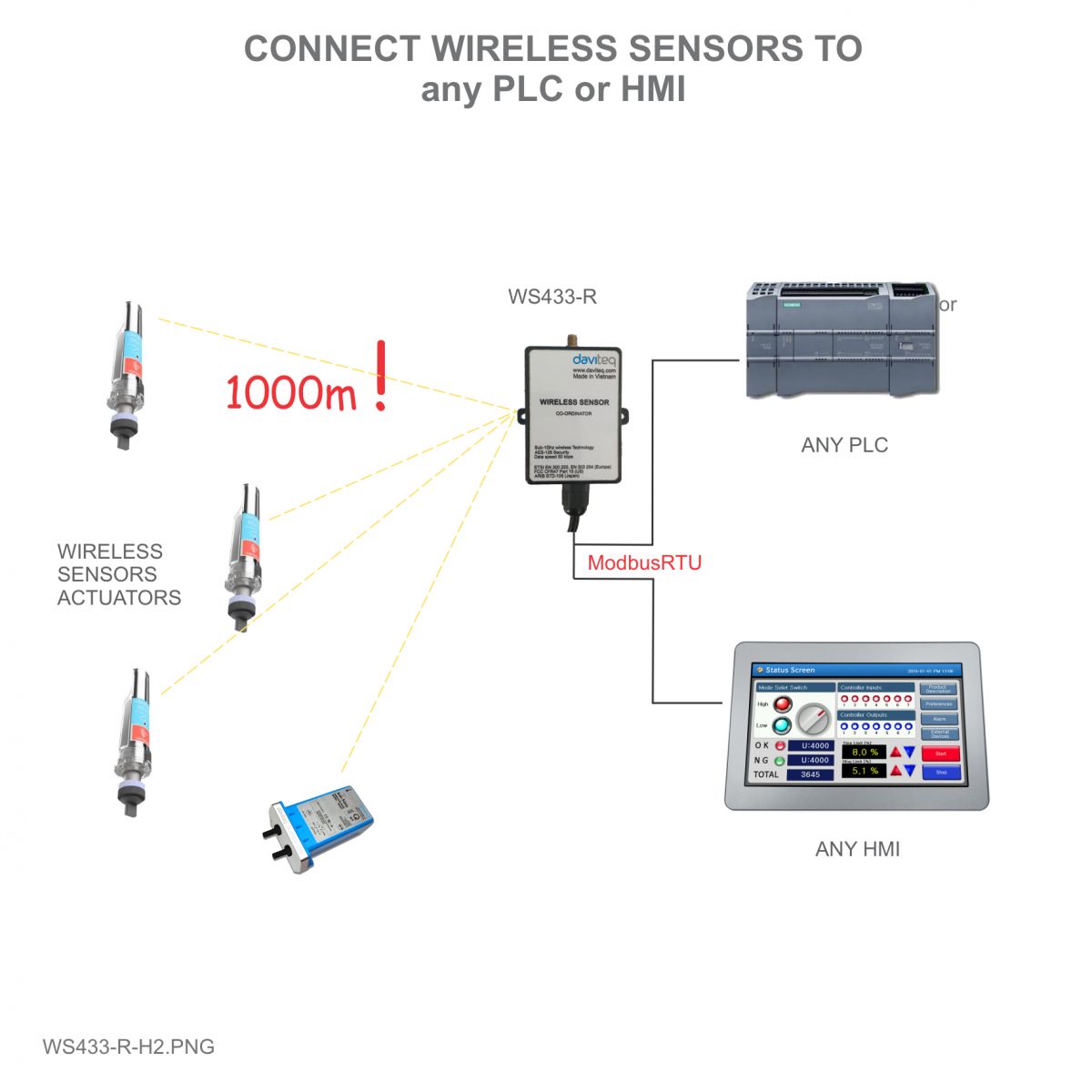

Wireless co-ordinator - WS433-R (old name is WR433) is a wireless co-ordinator in a wireless sensor network. It is able to configure the parameters for all end nodes in the network. By the Sub-Ghz technology from Texas Instruments, it is easy to establish multiple networks in same area without interference or channel conflict. One co-ordinator can handle maximum of 40 end nodes in its network.

HIGHLIGHT FEATURES

1. Reliable & Secured Wireless Connection: Sub-Ghz technology from Texas Instruments allows reliable wireless connection and secured data by AES-128
2. Long range Transmission: Narrow Band techniques & Sub-Ghz technology allow long distance transmisison at lowest energy consumption
3. Strong functions: Allow to configure and diagnostic each sensor node in the network to make sure the highest reliability
4. Simple Configuration: Easily configure via off-line software or online software on Globiots platform

Wireless Relay output module (SKU: WS433-RL), select SPDT or SPST contacts, select 2 or 4 channels, to control your motor, pump, valve, door, alarm, lighting, machines…It is configured the operation parameters like data sending interval, health check cycle...remotely from Globiots platform or via ModbusRTU software.

HIGHLIGHT FEATURES

1. Reliable & Secured Wireless sensors Connection: Sub-Ghz technology from Texas Instruments allows reliable wireless connection and secured data by AES-128
2. Long range Transmission: Narrow Band techniques & Sub-Ghz technology allow long distance transmisison at lowest energy consumption
3. Multiple types of contact: Select SPST or SPDT contacts, 2 or 4 channels

SPECIFICATION

• Outputs: 02 x SPDT relay or 04 x SPST relay
• SPST contacts: 0.3A@125VAC/1.0A@24VDC
• SPDT contacts: 5.0A@250VAC
• Functions: ON/OFF
• Electrical connection: cable 0.5m length with PG9 cable gland
• Optional accessories: 304SS Adapter PG9/male 1/2"NPT or PG13.5 or M20 to allow direct mounting on Process instruments or electrical panel
• Data speed: Up to 50kbps
• Tranmission distance, LOS: 500m
• Antenna: Internal Antenna, 3 dbi
• Power: 7-60VDC, max 200mA
• Frequency Band: ISM 433Mhz, Sub-GHz technology from Texas Instrument, USA
• Receiving Sensitivity: -110dBm at 50kbps
• International Compliance: ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan)
• Security Standard: AES-128
• Operating temperature of PCB: -40oC..+60oC (with AA L91 Energizer)
• Housing: Poly-carbonate, IP67
• Installation method: L-type bracket SUS304 , by M4 screws or double-sided 3M tape (included)
• Product dimensions: 125x30x30mm
• Net weight (without battery): < 100g
• Box dimension: 190x50x50mm
• Gross weight: 140g

Wireless sensor with 1-channel AC (SKU: WS433-AC) current input 5A to measure the AC current load of your motors, machines...to count the energy consumption, OVER-load or NO-load detection, run hour counting…It is configured the operation parameters like data sending interval, health check cycle...remotely from Globiots platform or via ModbusRTU software.

"The wireless module can last up to 10 years with a single AA battery."

HIGHLIGHT FEATURES

1. Reliable & Secured Wireless Connection
2. 10-year with a single battery
3. Work with common Current Transformers
4. Long range Transmission

SPECIFICATION PRODUCTS:

• Measuring range: 0..5A AC
• Accuracy: 1.0%
• Resolution: 10 bit
• Temperature Drift: < 100 ppm
• Electrical connection: cable 0.5m length with PG9 cable gland and wire crimpping connectors for SAFETY
• Optional accessories: 304SS Adapter PG9/male 1/2""NPT or PG13.5 or M20 to allow direct mounting on Process instruments or electrical panel
• Data speed: Up to 50kbps
• Tranmission distance, LOS: 500m

POPULAR USE CASES:

• Smart Server Room – MONITORING DATA CENTER SOLUTION
• Solution of refrigerated container power supply monitoring on barge

Wireless sensor with one channel to measure 0-20mA DC current from Process instruments like Pressure transmitter, Temperature transmitter, Level transmitter, Flow meters, Analyzers... at very low voltage drop. It is configured the operation parameters like data sending interval, health check cycle...remotely from Globiots platform or via ModbusRTU software.

"The wireless module can last up to 10 years with a single AA battery."

SKU: WS433-MA

HIGHLIGHT FEATURES OF PRODUCTS:

1. Reliable & Secured Wireless Connection
2. 10-year with a single battery
3. Low Voltage Drop
4. Long range Transmission

SPECIFICATION

• Measuring range: 0 .. 20mA
• Accuracy: 0.05% of span
• Resolution: 1/3000
• Temperature drift: < 50ppm
• Electrical connection: shielded cable 0.5m length with PG9 cable gland
• Optional accessories: 304SS Adapter PG9/male 1/2"NPT or PG13.5 or M20 to allow direct mounting on Process instruments or electrical panel
• Data speed: Up to 50kbps
• Tranmission distance, LOS: 500m

POPULAR USE CASES:

• Smart Server Room – MONITORING DATA CENTER SOLUTION
• Wireless sensor network replaces traditional 4-20mA wired network

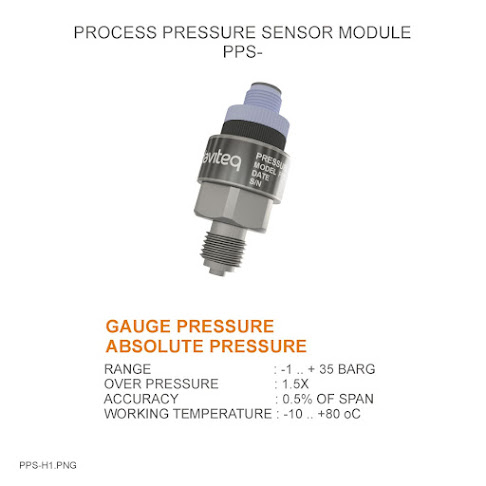

Process Pressure Wireless Sensor Module PPS have different kind of measurement, such as Gage/Absolute/Differential, raneg -1 .. + 700 bar, high accuracy and stability, Ultra-low power consumption. Easy connect to WS433-M12(-T) via M12 connector.

SPECIFICATION:

• Sensing Technology: Advanced PIEZO/Capacitance technology
• Measuring range: Select from -1 .. + 35 bar Gage/Absolute/Sealed Gage
• Over pressure protection: 1.5 x Span
• Accuracy: 0.5% of span
• Stability: < 0.3% span/year
• Wetted parts: 304SS/316SS
• Measuring Fluids: Any fluid which is workable with materials 304SS/316SS
• Working temperature: -10 .. + 80 oC
• Process connection Standard G1/4 or Others (consult factory)
• Electrical connection: M12-male connector

Ambient Humidity & Temperature Sensor Module ATH utilizes digital sensor delivers high accuracy measurement. Easy connect to WS433-M12(-T) via M12 connector.

HIGHLIGHT FEATURES

• Plug & Play
• Just plug the pressure module onto WS433-M12F via M12 connector, then it works automatically
• Multiple types
• Compact type or cable extionsion type to suite variety applications
• High accuracy
• Digital sensor with factory-calibration
• Sintered Filter
• Alloy sintered filter to protect sensor in hash environment

• See more: MODULE AMBIENT TEMPERATURE SENSOR

SPECIFICATION

• Sensor: Digital type, factory calibrated, output both Humidity & Temperature values
• Humidity measuring range: 0 .. 100 %RH
• Humidity accuracy: +/- 2.0%
• Humidity resolution: 0.1%
• Temperature measuring range: -40 .. + 85 oC
• Temperature accuracy: +/- 0.2 oC
• Temperature resolution: 0.1 oC
• Sensor Filter: 20um Alloy sintered filter
• Electrical connection: M12-male connector

Ambient Temperature Sensor Module ATE utilizes digital temperature sensor delivers high accuracy measurement in range -20 to + 60oC. Easy connect to WS433-M12(-T) via M12 connector.

• See more: Wireless sensor: Process pressure

HIGHLIGHT FEATURES

• Plug & Play
• Just plug the pressure module onto WS433-M12F via M12 connector, then it works automatically
• Multiple types
• Compact type or cable extionsion type to suite variety applications
• High accuracy
• Digital sensor with factory-calibration
• IP67 Weather-proof
• IP67 sensor probe allows immersion into ice-water for quick validation

Wireless sensor: Process pressure is a combination of wireless sensor transmitter WS433-M12F and sensor PPS , it has different kind of measurement, such as Gage/Absolute/Differential, raneg -1 .. + 700 bar, high accuracy and stability, Ultra-low power consumption.

HIGHLIGHT FEATURES

• Reliable & Secured Wireless Connection: Sub-Ghz technology from Texas Instruments allows reliable wireless connection and secured data by AES-128
• 10-year with a single battery: Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology fromTexas Instruments allow the sensor can last up to 10 years with a single battery AA.
• High accuracy: 0.5% of Span
• Wide measurement range: Select from -1 .. + 700 bar

SPECIFICATION SENSOR :

1. Sensing Technology: Advanced PIEZO/Capacitance technology
2. Measuring range: Select from -1 .. + 35 bar Gage/Absolute/Sealed Gage
3. Over pressure protection: 1.5 x Span
4. Accuracy & Stability: 0.5% of span, < 0.3% span/year
5. Measuring Fluids: Any fluid which is workable with wetted materials 304SS/316SS
6. Working temperature: -10 .. + 80 oC
7. Process connection: Standard G1/4 or Others (consult factory)
8. Electrical connection: M12-male connector

Sigfox sensor Daviteq

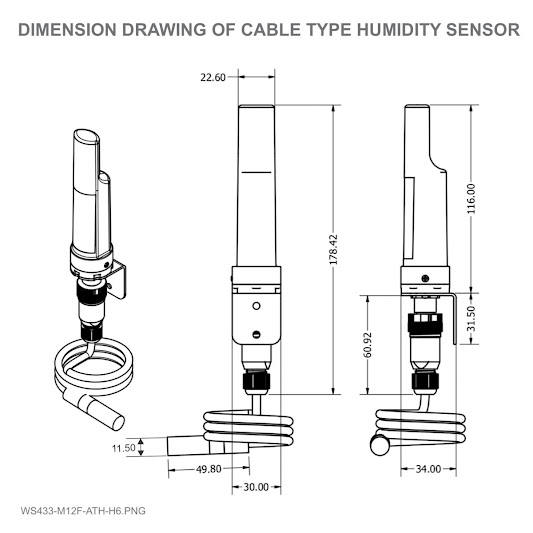

Wireless Sensor Ambient Humidity & Temperature is a combination of wireless sensor transmitter WS433-M12F and sensor ATH, it utilises Digital capacitance humidity sensor to deliver high accuracy and stable measurement. The wireless portion is Sub-GHz technology from Texas Instruments allows long range transmission at ultra-low power consumption. It will connect 2-way wirelessly to the wireless co-ordinator WS433-CL to send data and receiving the configuration.

It can be configured the operation parameters like data sending interval, health check cycle...remotely from Globiots platform or via ModbusRTU software (thru the WS433-CL). Its default data rate is 50 kbps, can be switched to 625 bps to increase the communication range. It can last up to 10 years with a single AA battery. There are a lot of applications as environment monitoring for office, warehouse, data center, hospital, agriculture...

Xem thêm: Refrigerated Truck Temperature Monitoring Solution: SmarTrans

SENSOR SPECIFICATION :

• Sensor: Digital type, factory calibrated, output both Humidity & Temperature values
• Humidity measuring range & accuracy: 0 .. 100 %RH, +/- 2.0%
• Humidity resolution: 0.1%
• Temperature measuring range & accuracy: -40 .. + 85 oC, +/- 0.2 oC
• Temperature resolution: 0.1 oC
• Sensor Filter: 20um Alloy sintered filter
• Electrical connection: M12-male connector

Wirelesss sensor Daviteq

Wireless sensors: Ambient Temperature is a combination of wireless sensor transmitter WS433-M12F and ambient temperature sensor ATE, it utilizes Digital temperature sensor delivers high accuracy measurement in range -35 to + 70oC.

The wireless portion is Sub-GHz technology from Texas Instruments allows long range transmission at ultra-low power consumption. It will connect 2-way wirelessly to the wireless co-ordinator WS433-CL to send data and receiving the configuration. It can be configured the operation parameters like data sending interval, health check cycle...remotely from Globiots platform or via ModbusRTU software (thru the WS433-CL).

See more: WIRELESS SENSOR TRANSMITTER - SKU WS433-M12F

- Its default data rate is 50 kbps, can be switched to 625 bps to increase the communication range. It can last up to 10 years with a single AA battery. There are a lot of applications as environment monitoring for office, warehouse, data center, hospital, agriculture...

WIRELESS SENSOR TRANSMITTER is wireless sensor transmitter utilizes the Sub-GHz technology from Texas Instruments allows long range transmission at ultra-low power consumption. This wireless module can connect with many kinds of measurement sensor, such as temperature, humidity, pressure, level, flow, RTD input, Thermoucouples input...

It automatically detects the attached measurement sensor. It is configured the operation parameters like data sending interval, health check cycle...remotely from Globiots platform or via ModbusRTU software. The wireless module can last up to 10 years with a single AA battery.

See more: IoT solution package for hydroponics system

Wireless sensors Sigfox NH3 and H2S for Toilet is a Sigfox-ready sensor with a built-in advanced gas sensor to measure the concentration of Ammonia NH3 and H2S to help assess odors in the Toilet. With a special design that increases the sensitivity of the sensor, even though it is mounted on the ceiling at a distance of up to 2.6m.

The sensor has an ultra-low-power design and smart firmware that allows the sensor to run on 2 x 1.5VDC AA batteries for 2-5 years with 15 minutes of updating. The sensor supports Sigfox network regions of the world, RC1, RC2, and RC4.

Typical application: Odor monitoring in private or public restrooms, toilets, and WC, helps to manage optimal cleaning staff.

See more: SMART INDOOR AIR QUALITY MONITOR

SPECIFICATION

Sensor type: High sensitive electrochemical type sensor, built-in auto-sampling mechanism

NH3 range: 0..100 ppm (or equivalent 0..285.7 ppm H2S)

NH3 tolerance limit: 200 ppm

Repeatability / Resolution / Stability per month: < 3% of reading / 0.1 ppm / < 1% of reading/month

Zero-point stability: +/- 0.3 ppm

Ambient pressure: 101.3 Kpa +/- 10%

Sensor life: 2 years, in clean air

Working temperature: -10 .. + 50°C

Working humidity: 15.. 90% RH
